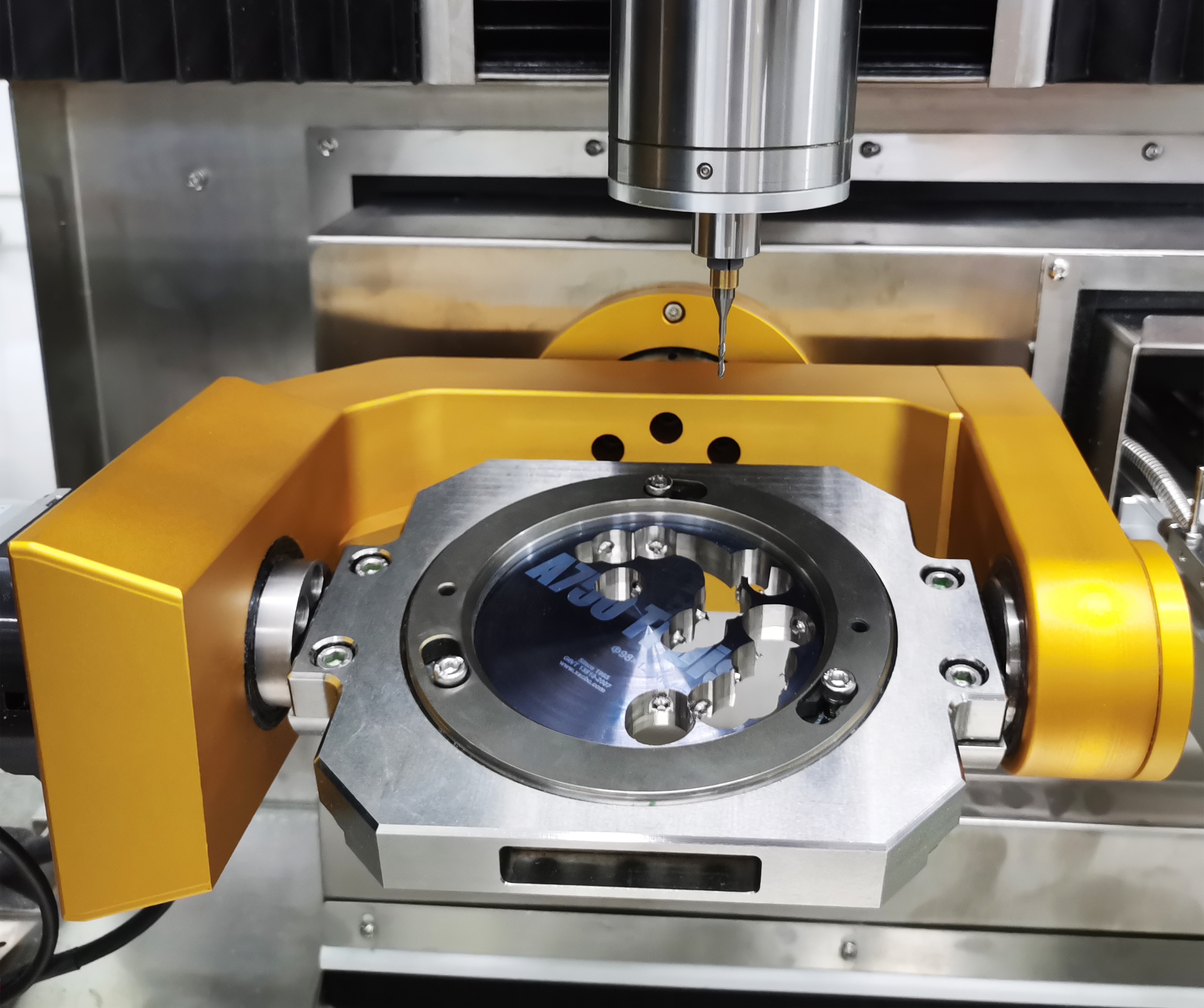

X-Mill 600
An All In One Milling Machine
High precision and high speed workability.
Diversity selection , able to process dental crown, dental bridge, abutment, rod clamp, implant bridge, etc.
—Implant bridge—
—Customized abutment—

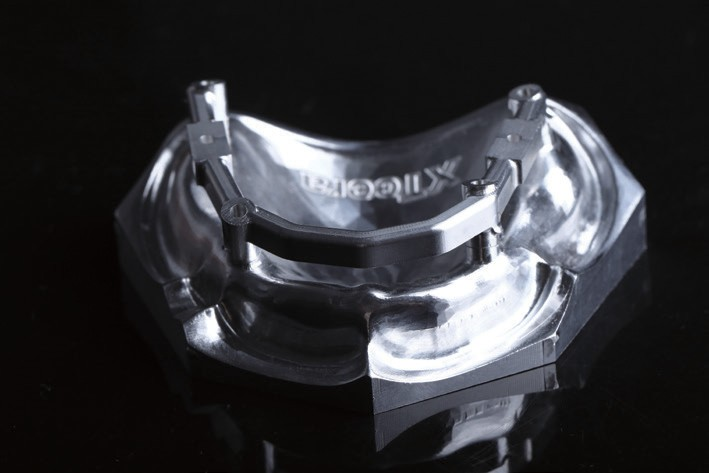

—Implant bar—
Technical Data
| Name | X-Mill 600 Milling Machine |
| Dimension | 1110x820x1820(mm) |
| Net weight | Approximately 850kg |
| Input voltage | Single phase AC 220V |
| Max power | 6.5kw |
| Spindle power | 2.5kw |
| Axis quantity | 5 |
| Milling range | XYZ:320/130/150mm A: 360° B:±36° |
| Milling mode | Wet milling |
| Max speed | 60,000 rpm |
| Max feeding speed | XYZ: 6000 mm/min |
| Bur capacity | 12 |
| Bur changing | Automatic |
| Cooling | Water cooling |
| Materials | CoCr/NEM, titanium, PMMA， wax, glass ceramics, hybrid ceramics. |
| Milling time | Crown:30 min abutment:50min.bar:2h |
